Generalized Linear Models II



Objectives

  • Poisson Regression
  • Numerical Optimization
  • Categorical variables >2 levels
  • Effect Coding
  • Variable Combinations

Pika Study

We sample plots of high elevation rocky outcrops, counting the number of American Pika within each plot; plot sizes are the same size.

Poisson Regression

We model the counts of American pika (\(y_{i}\)) at each site \(i = 1...n\) as a Poisson random variable with parameter \(\lambda\) being a function of our \(p\) site-level variables in \(n\) x \(p\) design matrix (\(\textbf{X}\)) and coefficients \(\boldsymbol{\beta}\) as,

\[ \begin{align*} \textbf{y} \sim & \text{Poisson}(\boldsymbol{\lambda})\\ \text{log}(\boldsymbol{\lambda}) =& \textbf{X}\boldsymbol{\beta}\\ \boldsymbol{\lambda} =& e^{\textbf{X}\boldsymbol{\beta}}. \end{align*} \]

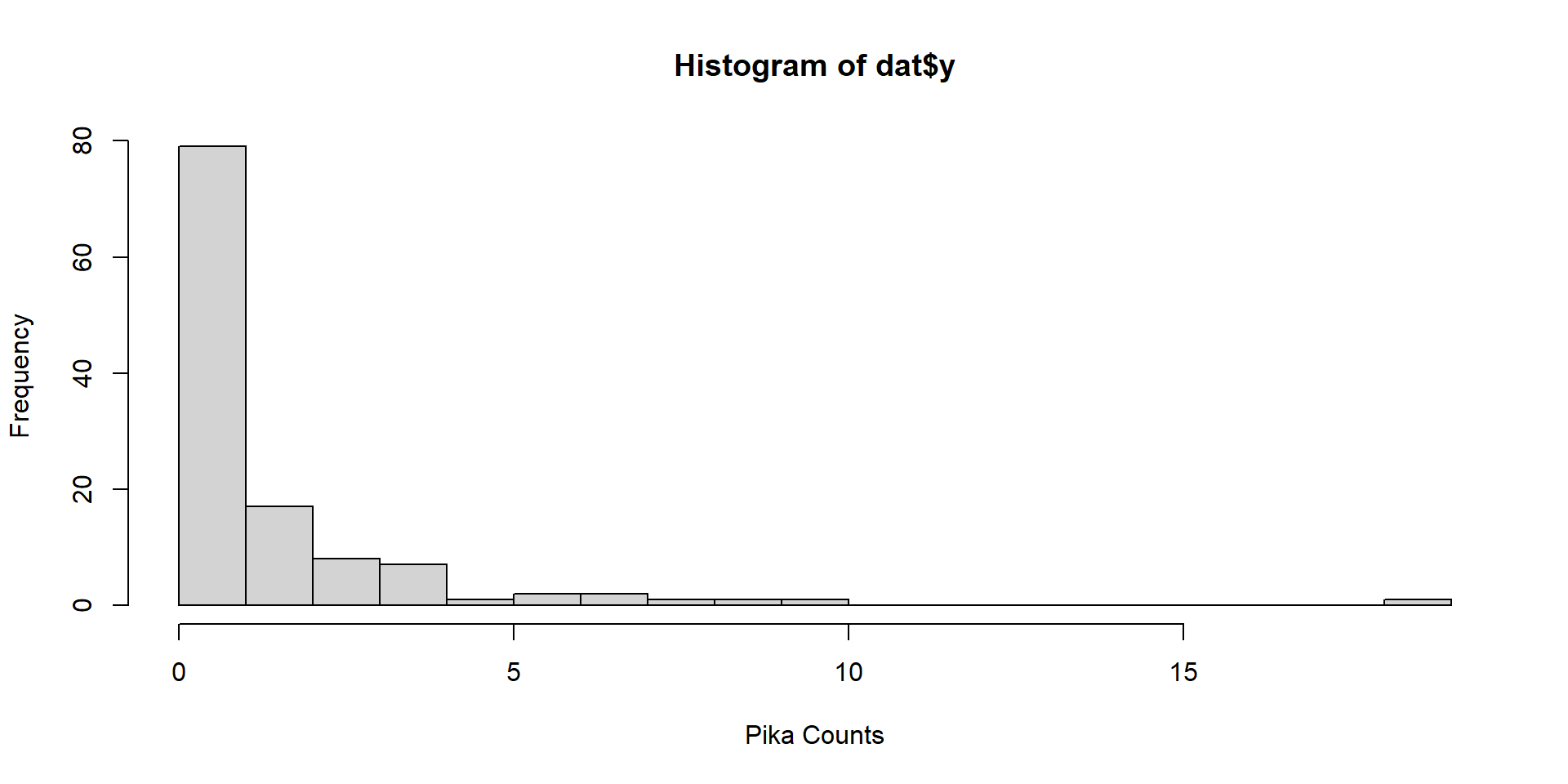

Data

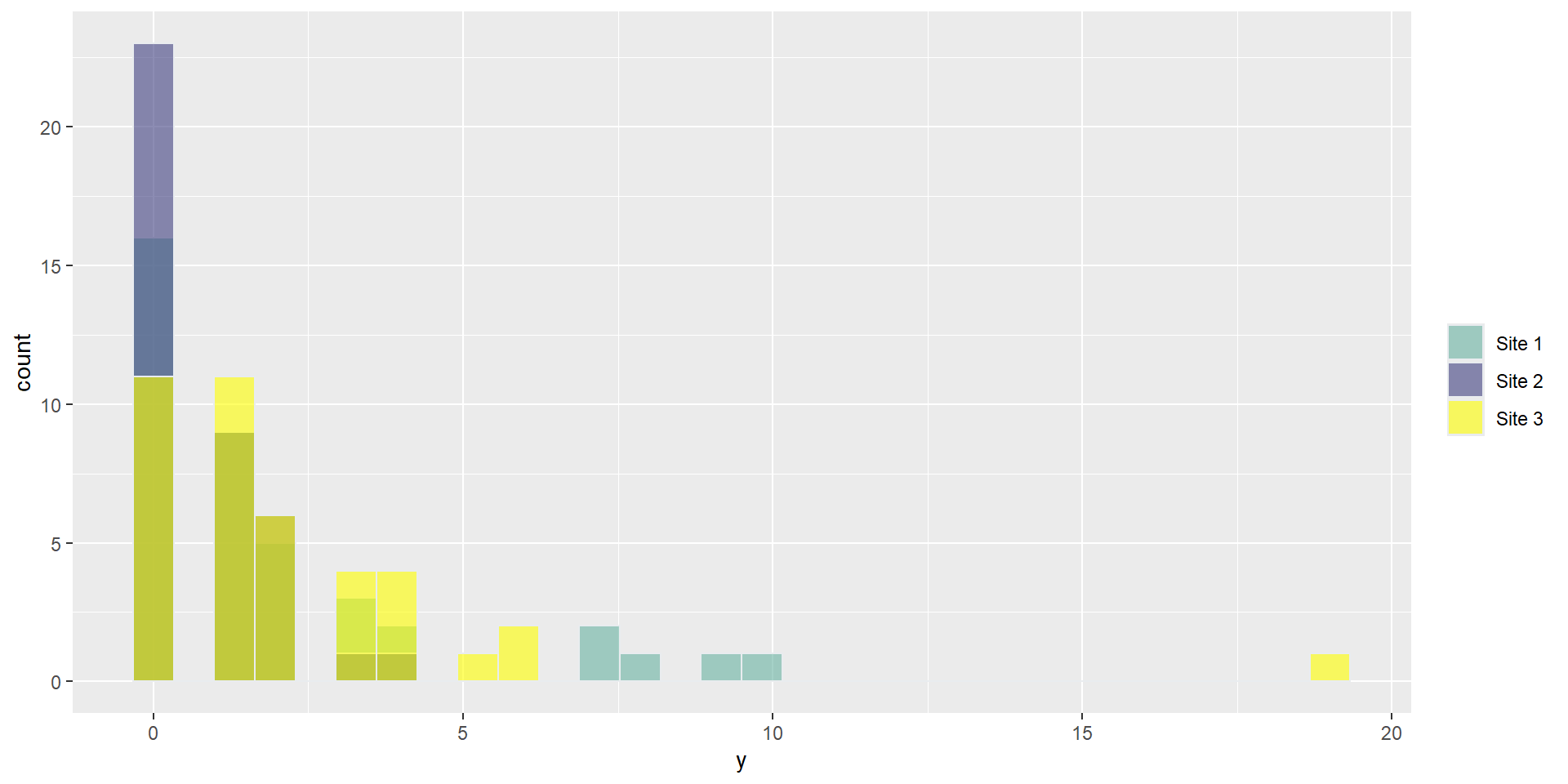

Counts by Site

Fit Model

Interpret the Coefficients

model = glm(y~site,
            data=dat,
            family = poisson(link = 'log')
            )
summary(model)

Call:
glm(formula = y ~ site, family = poisson(link = "log"), data = dat)

Coefficients:
            Estimate Std. Error z value Pr(>|z|)
(Intercept)   0.6549     0.1140   5.747 9.09e-09 ***
siteSite 2   -1.0116     0.2207  -4.584 4.56e-06 ***
siteSite 3    0.1221     0.1565   0.780    0.435
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

(Dispersion parameter for poisson family taken to be 1)

    Null deviance: 341.36  on 119  degrees of freedom
Residual deviance: 305.76  on 117  degrees of freedom
AIC: 496.33

Number of Fisher Scoring iterations: 6

Numerical Optimization of Likelihood

model$converged
[1] TRUE
model$method
[1] "glm.fit"
model$boundary
[1] FALSE
model$iter
[1] 6
model$control
$epsilon
[1] 1e-08

$maxit
[1] 25

$trace
[1] FALSE

Numerical Optim. for MLEs

#Use optim function with initial values and define the lower and upper limits of the possible values
  fit1 <- optim(
    par = c(0,0,0), #start
    X = X,
    fn = neg.log.like,
    method = "L-BFGS-B",
    lower = c(-10, -10, -10),
    upper = c(10, 10, 10)
  )

Comparison

        (Intercept) siteSite 2 siteSite 3
glm.fit   0.6549253  -1.011598  0.1221050
ours      0.6549260  -1.011601  0.1221027

Control over Dummy Coding

Make ‘Site 2’ the intercept

dat$site.re = relevel(dat$site,ref="Site 2")
levels(dat$site.re)
[1] "Site 2" "Site 1" "Site 3"


model2 = glm(y~site.re,
             data = dat,
             family = poisson(link = 'log')
            )
summary(model2)

Call:
glm(formula = y ~ site.re, family = poisson(link = "log"), data = dat)

Coefficients:
              Estimate Std. Error z value Pr(>|z|)
(Intercept)    -0.3567     0.1890  -1.887   0.0591 .
site.reSite 1   1.0116     0.2207   4.584 4.56e-06 ***
site.reSite 3   1.1337     0.2173   5.218 1.81e-07 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

(Dispersion parameter for poisson family taken to be 1)

    Null deviance: 341.36  on 119  degrees of freedom
Residual deviance: 305.76  on 117  degrees of freedom
AIC: 496.33

Number of Fisher Scoring iterations: 6

Same Model Different Estimates

Coeficients

       (Intercept) siteSite 2 siteSite 3
Model1      0.6549    -1.0116     0.1221
Model2     -0.3567     1.0116     1.1337

Predictions

           1   2     3     4   5
Model1 1.925 0.7 2.175 1.925 0.7
Model2 1.925 0.7 2.175 1.925 0.7

Design Matrix

  (Intercept) dat$siteSite 2 dat$siteSite 3
1           1              0              0
2           1              1              0
3           1              0              1
4           1              0              0
5           1              1              0
  (Intercept) dat$site.reSite 1 dat$site.reSite 3
1           1                 1                 0
2           1                 0                 0
3           1                 0                 1
4           1                 1                 0
5           1                 0                 0

More Control!

Deviation/Effect Coding Link

Lots of options

  model3=glm(y~site,
             data = dat,
             family = poisson(link = 'log'),
             contrasts = list(site = contr.sum)
            )

Deviation Coding Interpretation

coef(model3)
(Intercept)       site1       site2
  0.3584266   0.2964994  -0.7151015

Intercept = grand mean of site-means (log-scale), not mean of all observations

\(\beta_{0} + \beta_{1} \times 1 + \beta_{2}\times 0\)

\(0.3584266 + 0.2964994 \times 1 + 0\)

\(\beta_{1}\) = effect difference of Site 1 from Grand Mean

\(\beta_{2}\) = effect difference of Site 2 from Grand Mean

The coefficient for site-level 3 (difference from the grand mean)

sum(coef(model3)[-1]*(-1))
[1] 0.4186021

Intuition Check

mean.group = aggregate(y, by=list(site=site),FUN=mean)
mean.group
    site     x
1 Site 1 1.925
2 Site 2 0.700
3 Site 3 2.175
#Site 1
exp(0.3584266 + 0.2964994)
[1] 1.925
as.numeric(predict(model3,type="response")[1])
[1] 1.925


#Site 2
exp(0.3584266 + -0.7151015 )
[1] 0.7
as.numeric(predict(model3,type="response")[2])
[1] 0.7


#Site 3
exp(0.3584266 + 0.4186021)
[1] 2.175
as.numeric(predict(model3,type="response")[3])
[1] 2.175

More Control Again

Contrasts

No shared connection among these partial intercepts

  model4=glm(y~0+site,
             data=dat,
             family = poisson(link = 'log')
            )

# No shared intercept
head(model.matrix(~0 + site, data = dat), n = 6)
  siteSite 1 siteSite 2 siteSite 3
1          1          0          0
2          0          1          0
3          0          0          1
4          1          0          0
5          0          1          0
6          0          0          1

Same Model Different Estimates

Coeficients

       (Intercept) siteSite 2 siteSite 3
Model1   0.6549260 -1.0116009  0.1221027
Model2  -0.3566749  1.0116009  1.1337036
Model3   0.3584266  0.2964994 -0.7151015
Model4   0.6549260 -0.3566749  0.7770287

Predictions

           1   2     3     4   5
Model1 1.925 0.7 2.175 1.925 0.7
Model2 1.925 0.7 2.175 1.925 0.7
Model3 1.925 0.7 2.175 1.925 0.7
Model4 1.925 0.7 2.175 1.925 0.7

Deviance

           [,1]
Model1 305.7557
Model2 305.7557
Model3 305.7557
Model4 305.7557

Taking Control

X = model.matrix(~Independent Variables)

#all variables in dat (additive)
X = model.matrix(~., data = dat)

#all variables in dat (pair-wise interactions)
X = model.matrix(~.^2, data = dat)

#all variables in dat (three way- interactions)
X = model.matrix(~.^3, data = dat)

model = glm(y~ 0 + X, ...)

Poisson Regression (offset)

What if our counts of pika are at plots with different sizes?

Plot size (\(\textbf{A}\)) needs to be controlled for. But, we don’t want to estimate an effect as it’s part of the design. Rather, we want to model the rate - counts per unit area.

\[ \begin{align*} \textbf{y} \sim & \text{Poisson}(\frac{\boldsymbol{\lambda}}{\textbf{A}})\\ \text{log}(\frac{\boldsymbol{\lambda}}{\textbf{A}}) =& \textbf{X}\boldsymbol{\beta} \end{align*} \]

Offset

Equivalent

\[ \begin{align*} \text{log}(\frac{\boldsymbol{\lambda}}{\textbf{A}}) =& \beta_0 + \beta_1 \textbf{x}_{1}\\ \text{log}(\boldsymbol{\lambda}) =& \beta_0 + \beta_1 \textbf{x}_{1} + 1\times \textbf{A} \end{align*} \]

Offset Code

model.rate1 = glm(y~site+offset(log(area)),
            data=dat,
            family = poisson(link = 'log')
            )

model.rate2 = glm(y~site,
            offset = log(area),
            data=dat,
            family = poisson(link = 'log')
            )

coef(model.rate1)
(Intercept)  siteSite 2  siteSite 3
 -0.8036891  -0.4692766  -0.0582790
coef(model.rate2)
(Intercept)  siteSite 2  siteSite 3
 -0.8036891  -0.4692766  -0.0582790






Variable Combinations

Variable Combinations

Additive & Interaction combinations of categorical and continuous variables

  • site (categorical)
  • herb.cover (continuous)
  • dist.trail (continuous)
head(dat)
  y   site  herb.cover  dist.trail site.re area
1 0 Site 1 -0.22630093  0.06679655  Site 1    2
2 1 Site 2  0.02221148 -0.24641488  Site 2    5
3 0 Site 3 -1.01517375 -0.73612867  Site 3    2
4 1 Site 1  1.18038309  0.07586011  Site 1    3
5 0 Site 2 -2.04470642 -0.81595409  Site 2    2
6 2 Site 3  2.44433686  0.17929858  Site 3    2

Additive

Continuous and Categorical

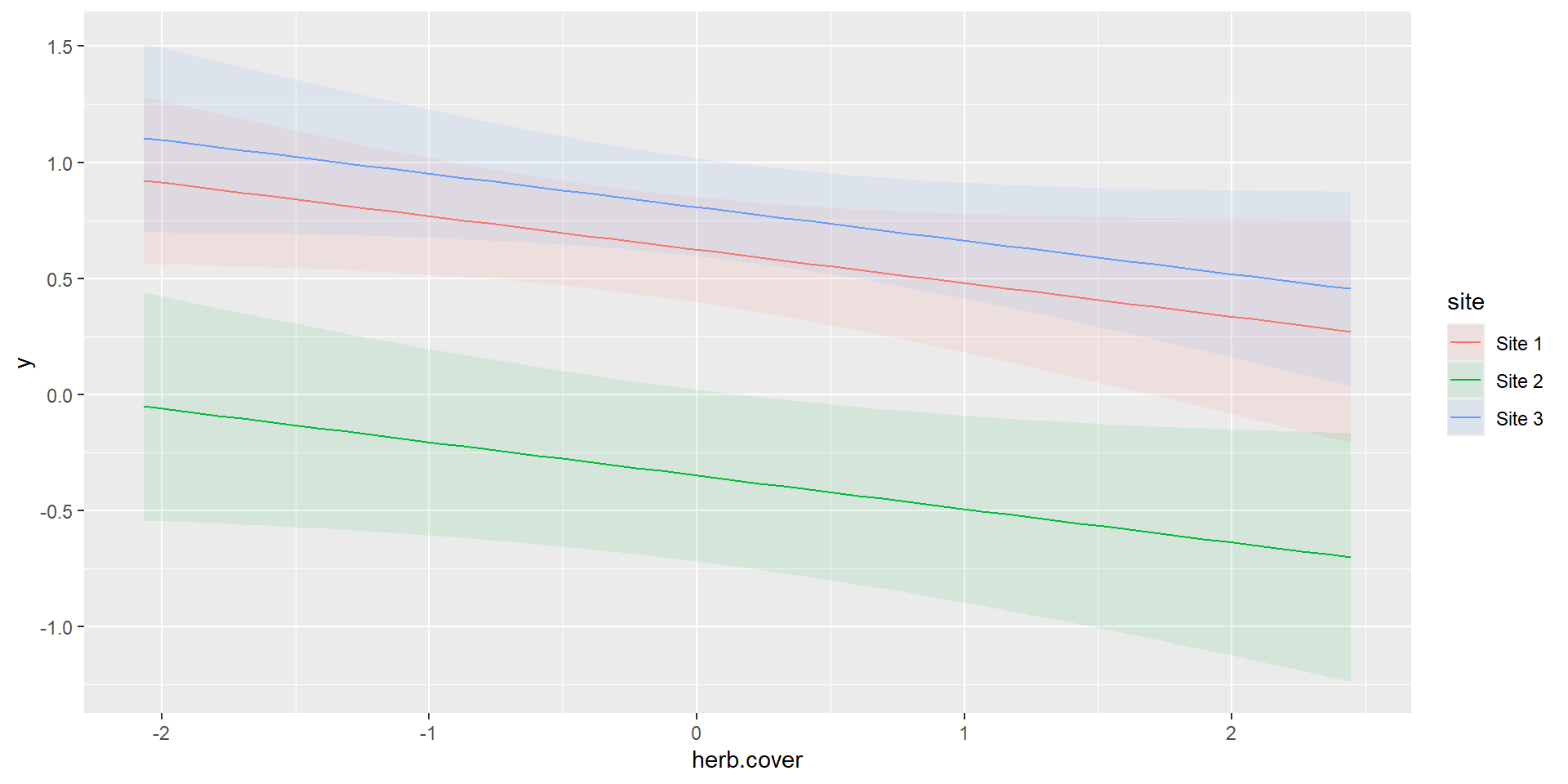

Linear Combination on log-scale

m1 = glm(y~site+herb.cover,data=dat,family = poisson(link = 'log'))
marginaleffects::plot_predictions(m1, condition=c("herb.cover","site"),type="link")

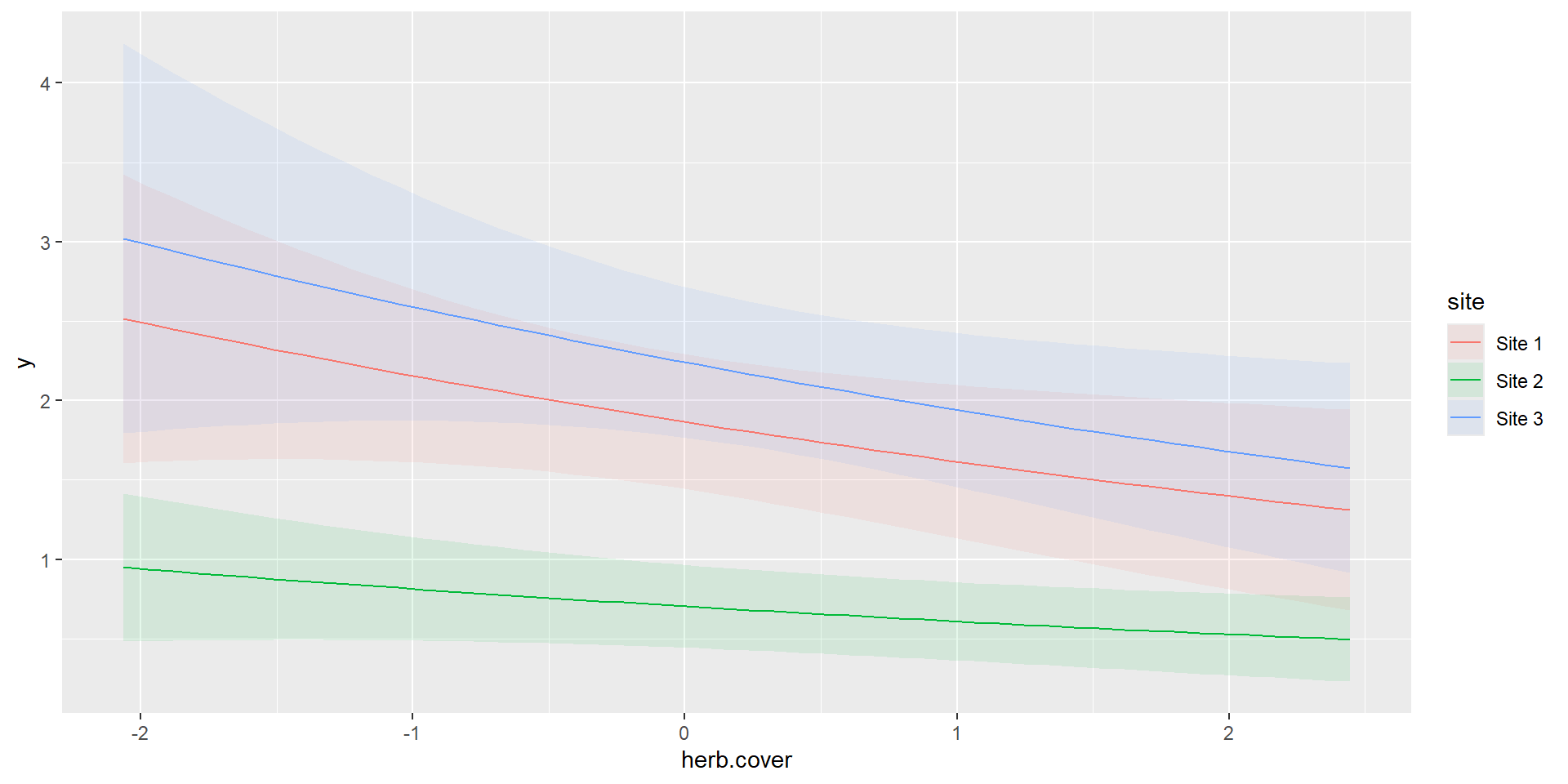

Linear Combination on response-scale

marginaleffects::plot_predictions(m1,
                                  condition=c("herb.cover","site"),
                                  type="response")

Additive

Continuous and Continuous

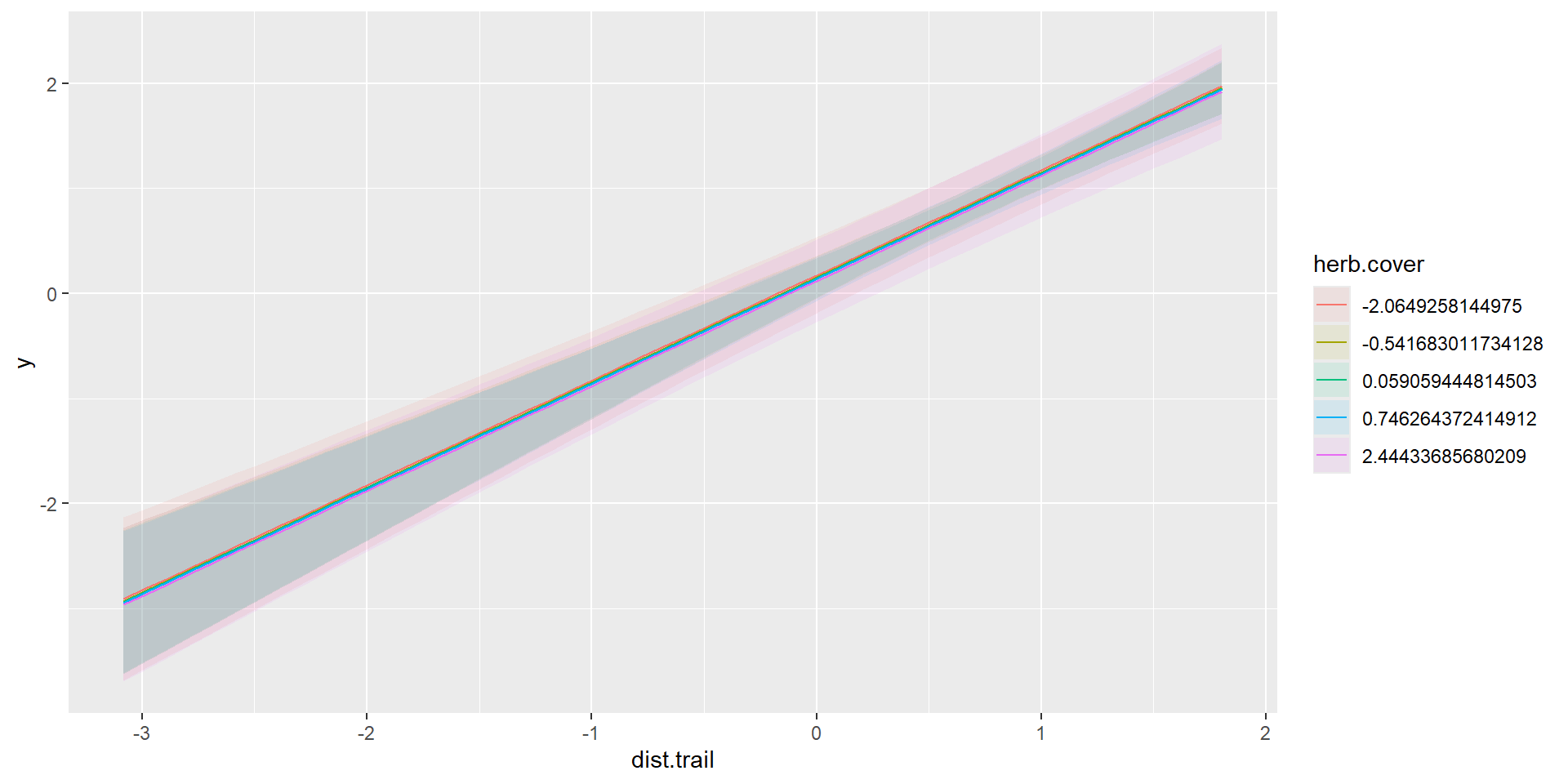

Linear Combination on log-scale

m2 = glm(y~dist.trail+herb.cover,data=dat,family = poisson(link = 'log'))
marginaleffects::plot_predictions(m2,
                                  condition=c("dist.trail","herb.cover"),
                                  type="link")

Linear Combination on response-scale

marginaleffects::plot_predictions(m2,
                                  condition=c("dist.trail","herb.cover"),
                                  type="response")

Interaction

Continuous and Categorical

m3 = glm(y~site*herb.cover,data=dat,family = poisson(link = 'log'))
m3 = glm(y~site+herb.cover+site:herb.cover,data=dat,family = poisson(link = 'log'))
head(model.matrix(~site*herb.cover,data=dat))
  (Intercept) siteSite 2 siteSite 3  herb.cover siteSite 2:herb.cover
1           1          0          0 -0.22630093            0.00000000
2           1          1          0  0.02221148            0.02221148
3           1          0          1 -1.01517375            0.00000000
4           1          0          0  1.18038309            0.00000000
5           1          1          0 -2.04470642           -2.04470642
6           1          0          1  2.44433686            0.00000000
  siteSite 3:herb.cover
1              0.000000
2              0.000000
3             -1.015174
4              0.000000
5              0.000000
6              2.444337

Interaction

Continuous and Categorical

summary(m3)

Call:
glm(formula = y ~ site + herb.cover + site:herb.cover, family = poisson(link = "log"),
    data = dat)

Coefficients:
                      Estimate Std. Error z value Pr(>|z|)
(Intercept)             0.2495     0.1609   1.551   0.1209
siteSite 2             -0.6522     0.2561  -2.546   0.0109 *
siteSite 3              0.4728     0.1987   2.379   0.0174 *
herb.cover             -0.9102     0.1626  -5.597 2.18e-08 ***
siteSite 2:herb.cover   1.1299     0.2665   4.240 2.24e-05 ***
siteSite 3:herb.cover   1.0650     0.1948   5.466 4.61e-08 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

(Dispersion parameter for poisson family taken to be 1)

    Null deviance: 341.36  on 119  degrees of freedom
Residual deviance: 267.16  on 114  degrees of freedom
AIC: 463.74

Number of Fisher Scoring iterations: 6

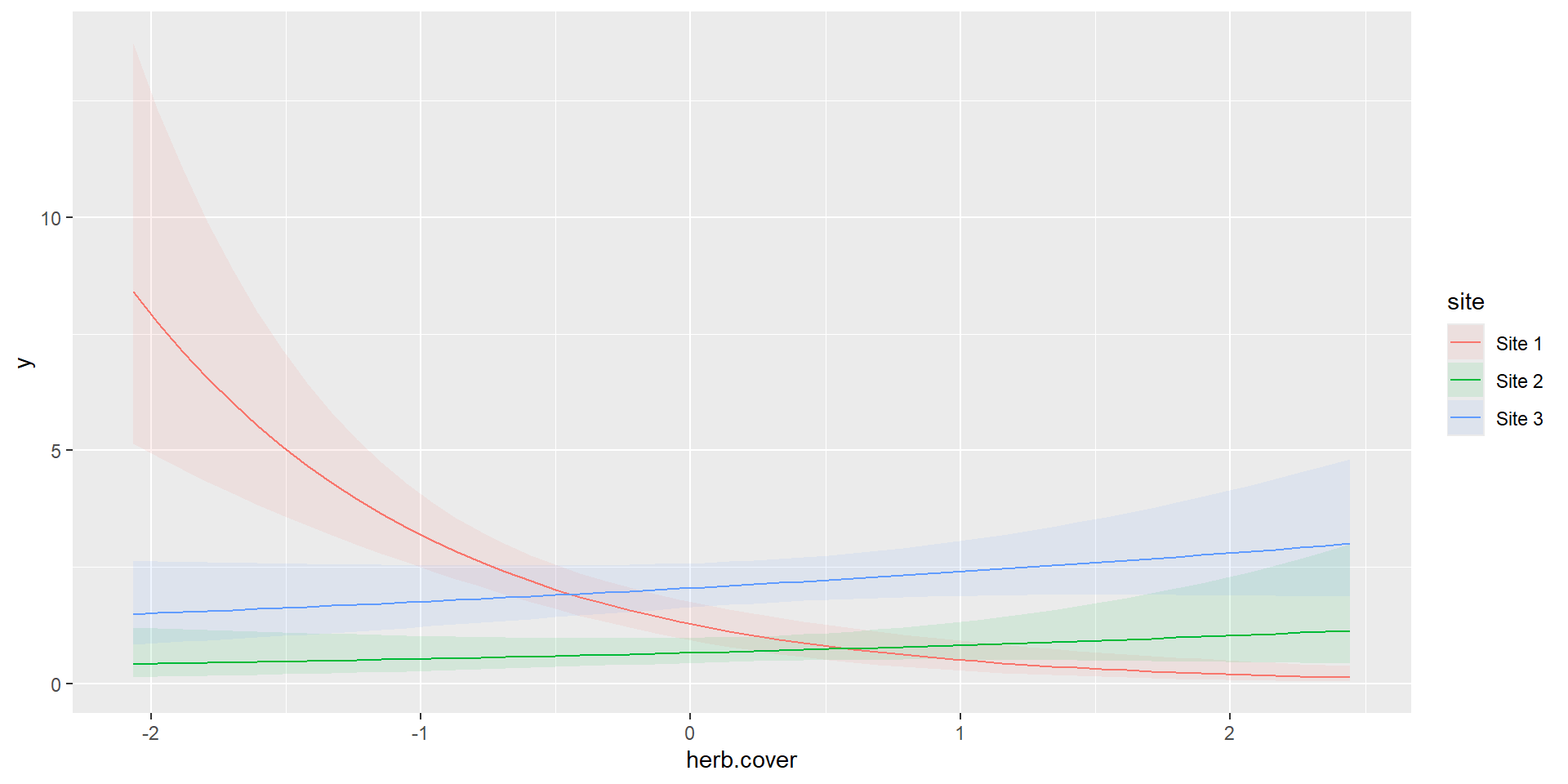

Interaction

Continuous and Categorical

marginaleffects::plot_predictions(m3,condition=c("herb.cover","site"))

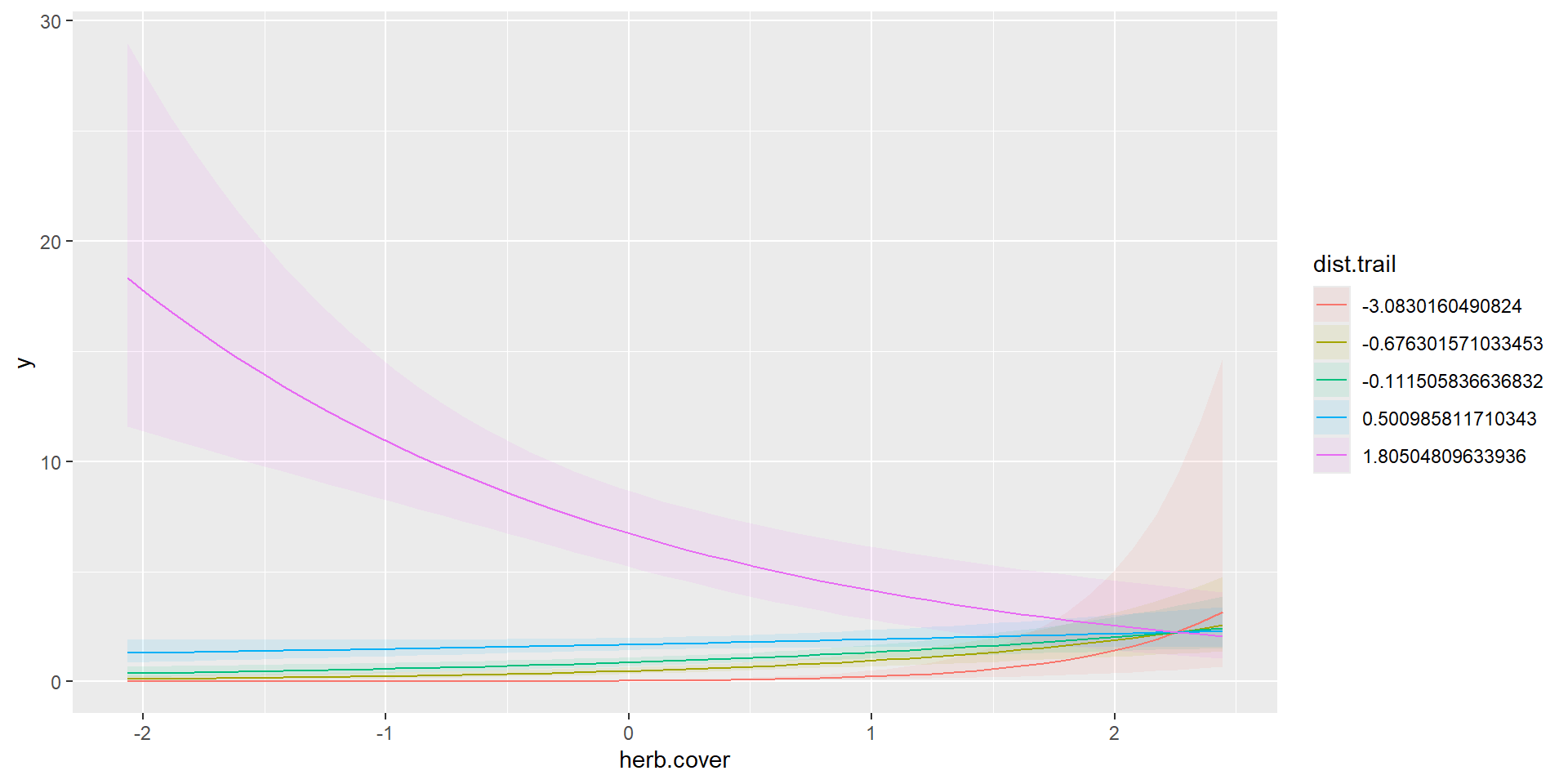

Interaction

Continuous and Continuous

m4 = glm(y~herb.cover*dist.trail,data=dat, family = poisson(link = 'log'))
m4 = glm(y~herb.cover+dist.trail+herb.cover:dist.trail,data=dat,family = poisson(link = 'log'))
marginaleffects::plot_predictions(m4, condition=c("herb.cover","dist.trail"))

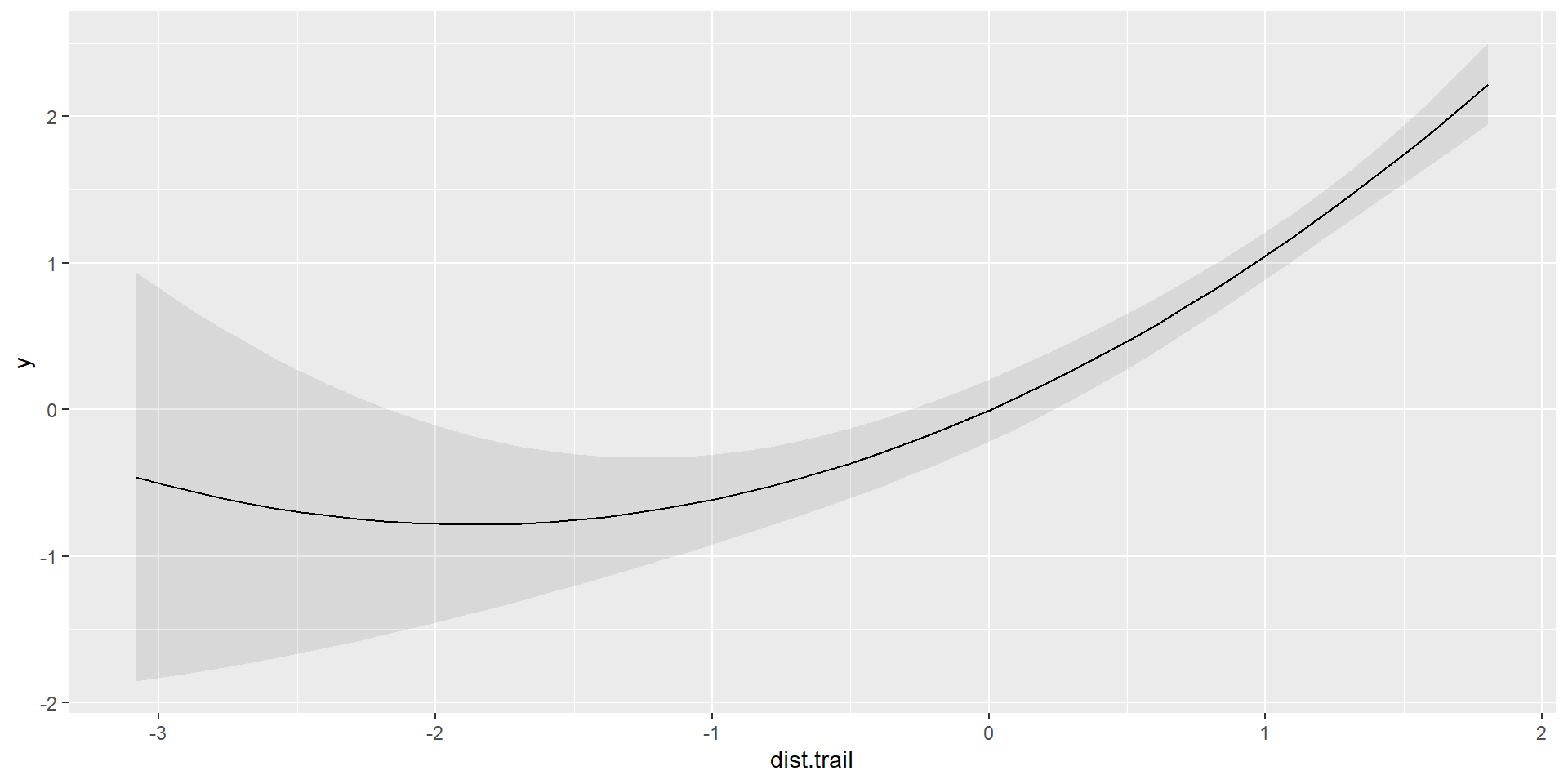

Polynomial

Quadratic

m5 = glm(y~poly(dist.trail,2),data=dat,family = poisson(link = 'log'))
m5 = glm(y~dist.trail+I(dist.trail^2),data=dat,family = poisson(link = 'log'))
marginaleffects::plot_predictions(m5,condition=c("dist.trail"),type="link")

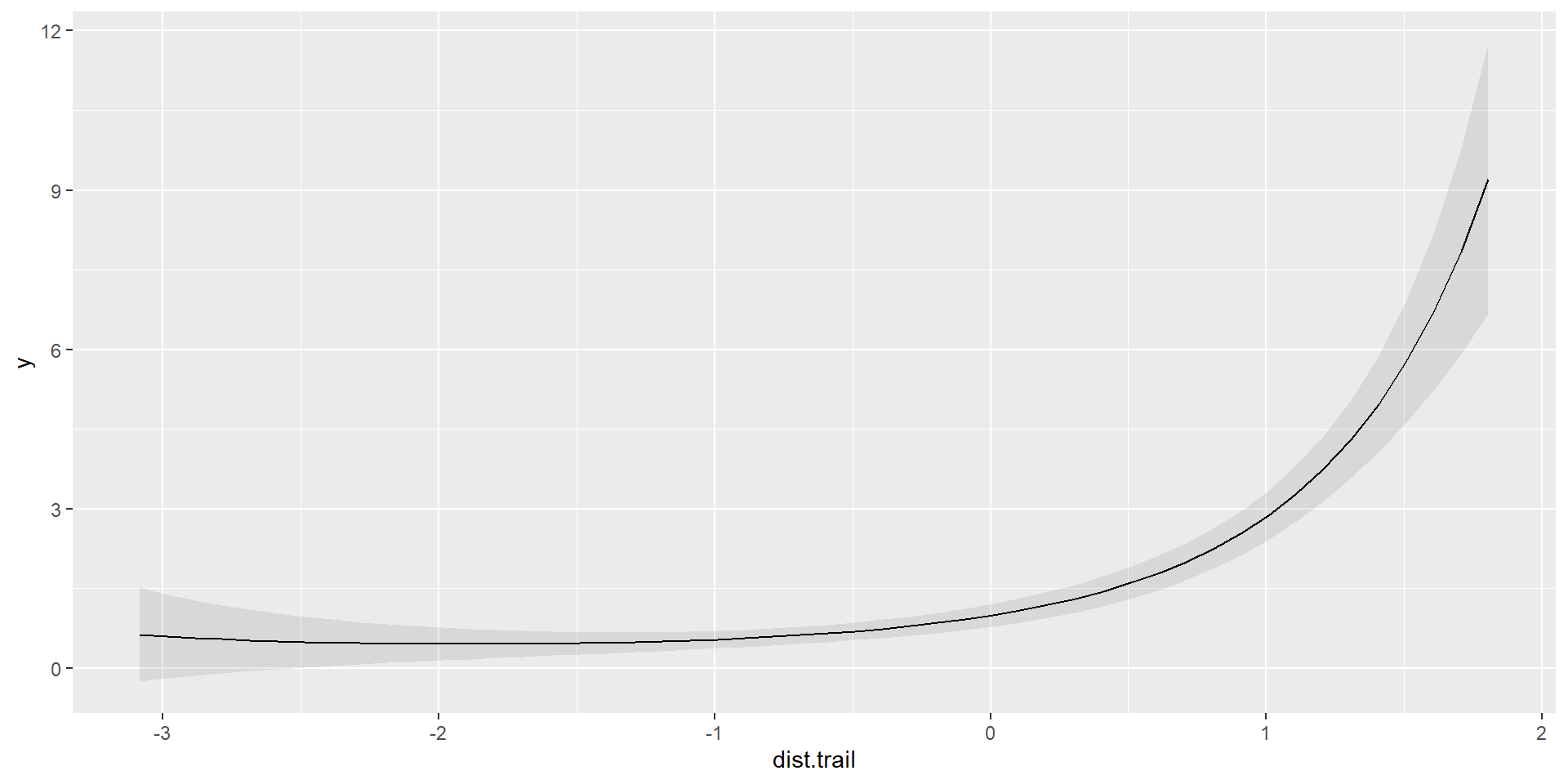

m5 = glm(y~poly(dist.trail,2),data=dat,family = poisson(link = 'log'))
m5 = glm(y~dist.trail+I(dist.trail^2),data=dat,family = poisson(link = 'log'))
marginaleffects::plot_predictions(m5,condition=c("dist.trail"),type="response")

Recap

  • Poisson Regression
  • Numerical Optimization
  • Categorical variables >2 levels
  • Effect Coding
  • Variable Combinations






Lab
